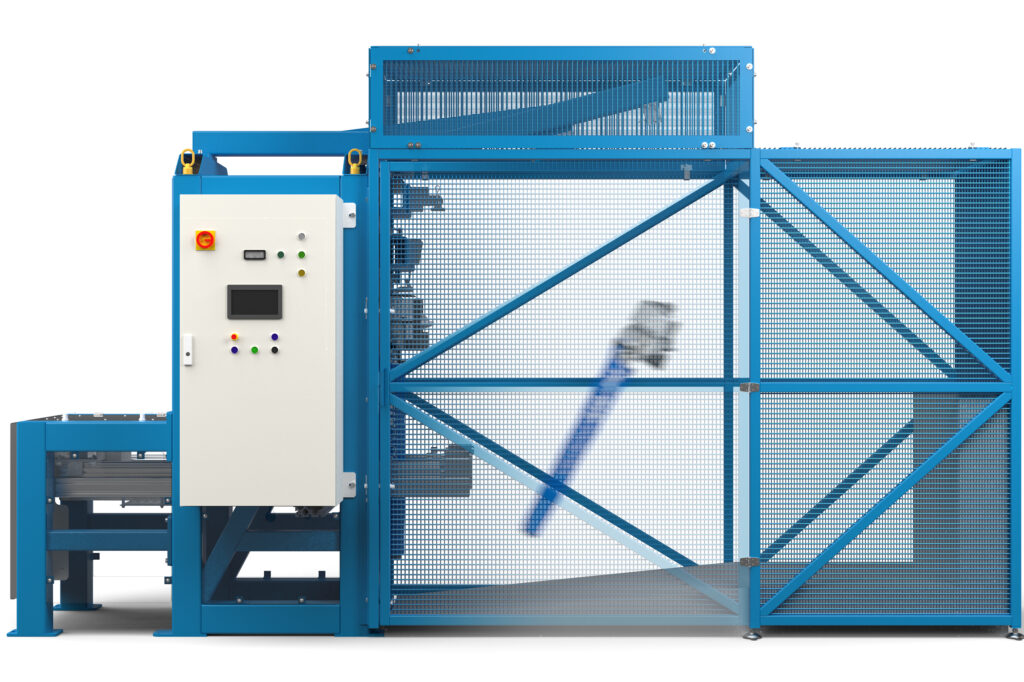

Cellbond’s Dynamic Test Rig (DTR) is used for certification tests of both the aPLI and Flex-PLI legform impactors. The rig facilitates both inverse and dynamic impact conditions defined for the aPLI as well as the inverse impact and pendulum test conditions for the Flex-PLI in accordance with Regulation R127 and ISO TS 20458.
The DTR uses a linear electric motor to launch the linear guided impactor with honeycomb block for inverse dynamic tests on both impactors. The pendulum test specified for the Flex-PLI is facilitated by automated lifting of the impactor at the ankle ballast.
Key Features
- Pendulum and Inverse testing compliant in line with GTR9 specifications.
- Easy setup and operation, including integrated safety features.
- Digital angle display and pendant control.
- Repeatability and accuracy with twin linear motors and supported encoding.
Specifications (Single Pendulum)
| Overall Dimensions* | Total Weight |
|---|---|
| 1.2 x 2.4 x 4.1 m | 800 kg |
Applications & Regulations
| Flex-PLI | UN Regulation No. 127, Annex 6 |
| aPLI | ISO/TS20458, Section 6 |
