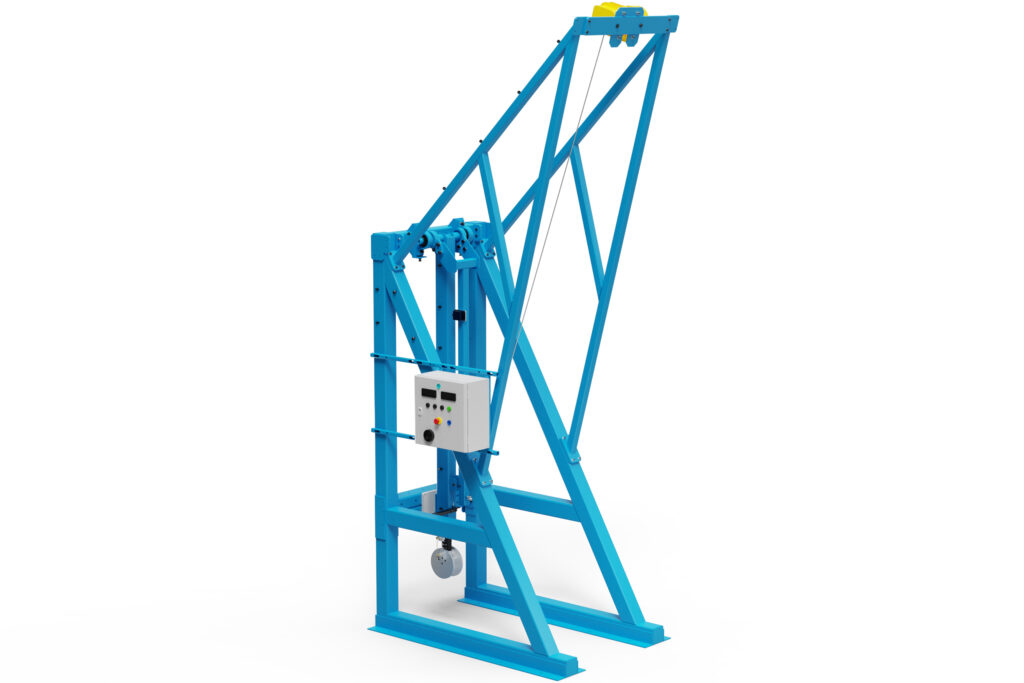

The Neck Pendulum Test Stand is used to certify rubber components, mostly neck and lumbar assemblies, of ATDs. Depending on the dummy and the application different test modes are considered: flexion, extension, torsion, and lateral impacts. Dedicated fixtures to run these tests are available.
The Cellbond pendulum is compliant with specifications as written in the United States Code of Federal Regulation, Title 49, Part 572.
Key Features
- Modular design allows two pendulums to be fixed side by side.
- LED Height/angle & speed indication.
- Pendulum arm universal mounting system allows multiple product specific fixtures to be utilised.
Specifications (Single Pendulum)
| Overall Dimensions* | Total Weight |
|---|---|
| 0.9 x 1.5 x 4.6 m | 750 kg |
Applications & Regulations
| Hybrid III 50th Percentile Male | 49CFR Part 572 Subpart-E |
| Hybrid III 5th Percentile Female | 49CFR Part 572 Subpart-O |
| WorldSID 50M Dummy | W50-9900 WorldSID 50M User Manual |
| Q0 | 047-9900 User Manual Q0 |
| Q1 | 036-9900 User Manual Q1 |
| Q1.5 | 048-9900 User Manual Q1.5 |
| Q3 | 020-9905 User Manual Q3 |
| Q6 | 033-9900 User Manual Q6 |
| Q10 | 010-9900 User Manual Q10 |
| THOR-5F | 474-9901 Qualification Manual |
| THOR-50M | THOR-50M Qualification Manual |
Instrumentation**
- Uni-axial Accelerometer.
- ATD Specific Load cells.
- Dummy specific angular rate sensors.
- Dummy specific rotary potentiometers.
*Safety enclosure not included options available through Cellbond.
**Available separately through Cellbond.
