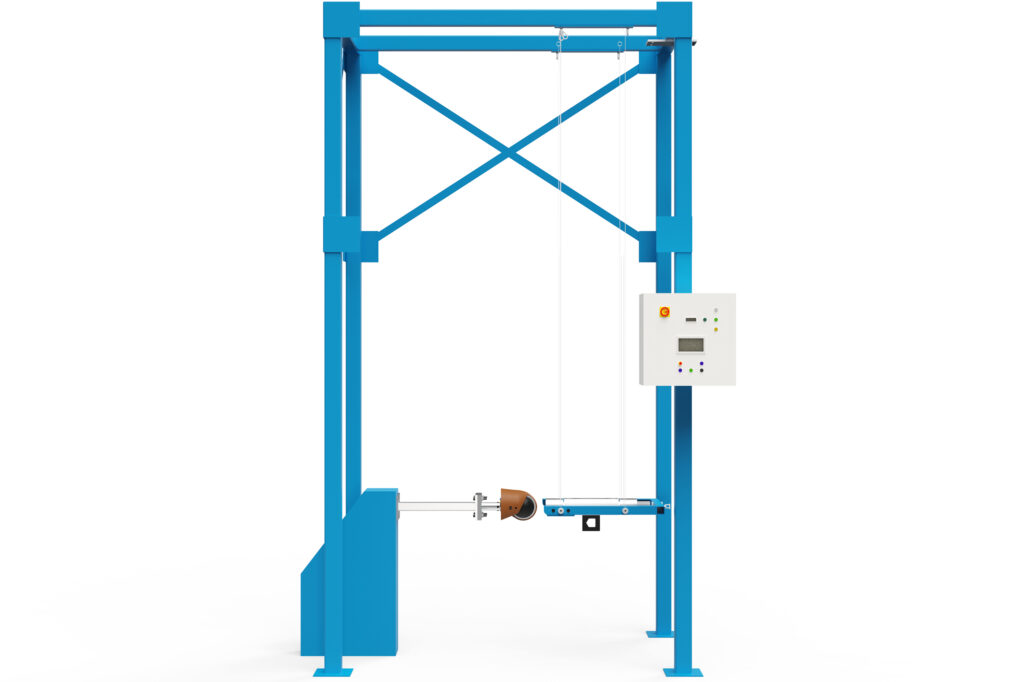

The Knee Impact Rig is a versatile system designed for testing and certifying components of the upper leg. This includes the knee and knee slider. It assesses how these components respond to two types of tests. The knee impact test involves a direct in-line impact at the kneecap centre. The knee slider test looks at the relative motion between the tibia and femur bones during sliding knee movement.
Cellbond provides specific fixtures needed for your ATD. Please contact our sales team for more information.
The Cellbond Knee Impact Rig is compliant with specifications outlined in the United States Code of Federal Regulation, Title 49, Part 572. Please see the Applications & Regulations list below.
Key Features
- Compatible with all Cellbond impact probes.
- Control Panel to allow rig operation.
- Fully adjustable suspension cables to allow precise probe height setting.
- Impact velocity and pendulum height readouts.
Specifications (Single Pendulum)
| Overall Dimensions (L xW x H) | Total Weight |
|---|---|
| 4 m x 1.1 m x 3 m | 400 kg |
Applications & Regulations
| Hybrid III 50th Percentile Male | 49CFR Part 572 Subpart-E |
| Hybrid III 5th Percentile Female | 49CFR Part 572 Subpart-O |
| THOR-5F | 474-9901 Qualification Manual |
| THOR-50M | THOR-50M Qualification Manual |
Instrumentation*
- Uni-axial Accelerometer.
- Dummy specific Load cells, linear potentiometers.
*Available separately through Cellbond.
