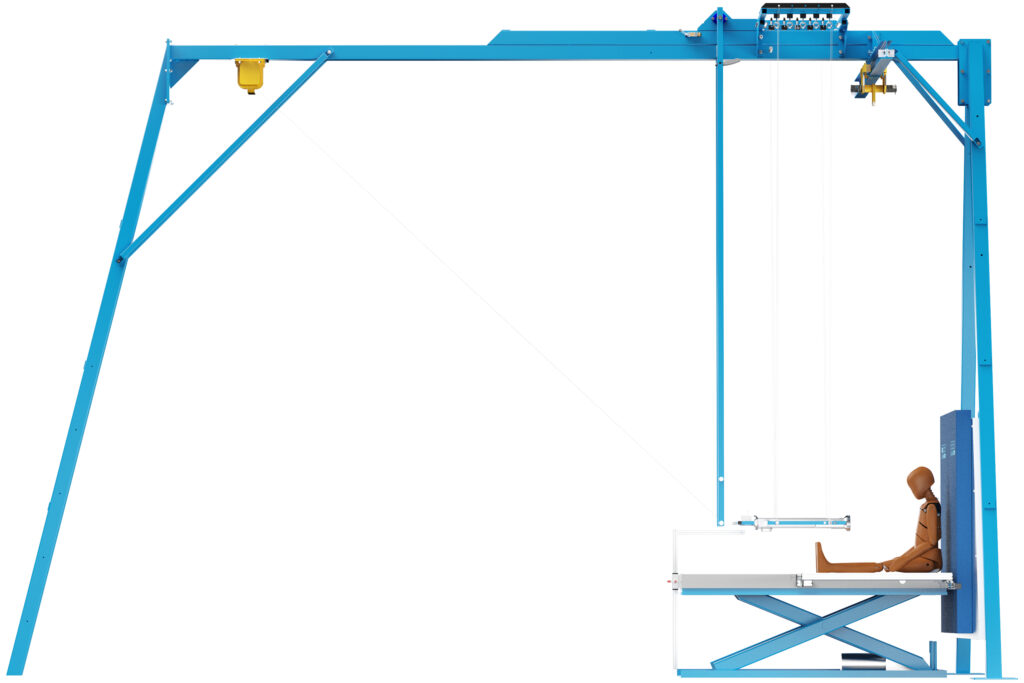

Large Pendulum Test Rig

The Large Pendulum Test Rig is used for full and partial ATD certification.

Cellbond supplies dedicated fixtures suitable for multiple ATDs, including the THOR-50M, THOR-5F & Q-Series. See the list below for more details.

Cellbond’s Large Pendulum Test Rig is compliant with specifications as written in the United States Code of Federal Regulation, Title 49, Part 572.

Visit our Fixtures page to find out more.

Key Features

Compatible with all Cellbond impact probes.
Control panel to allow rig operation.
Fully adjustable suspension cables to allow precise probe height setting.
Impact velocity and pendulum height readouts.
Integrated hoist assembly to aid loading and unloading of dummies.

Specifications

Overall Dimensions* (LxWxH)	Total Weight
6.9 x 2.5 x 4.6 m	1108 kg

Applications & Regulations

Hybrid III 50^th Percentile Male	49CFR Part 572 Subpart-E
Hybrid III 5^th Percentile Female	49CFR Part 572 Subpart-O
WorldSID 50M Dummy	W50-9900 WorldSID 50M User Manual
Q0	047-9900 User Manual Q0
Q1	036-9900 User Manual Q1
Q1.5	048-9900 User Manual Q1.5
Q3	020-9905 User Manual Q3
Q6	033-9900 User Manual Q6
Q10	010-9900 User Manual Q10

This list is not exhaustive, please contact the sales team at Cellbond to enquire about the large pendulum capability and compatibility with your ATD.

Instrumentation**

Uni-axial Accelerometer.
ATD Specific Load cells and displacement sensors.
Dummy specific tri-axial accelerometers.

*Safety enclosure not included options available through Cellbond.
**Available separately through Cellbond.
