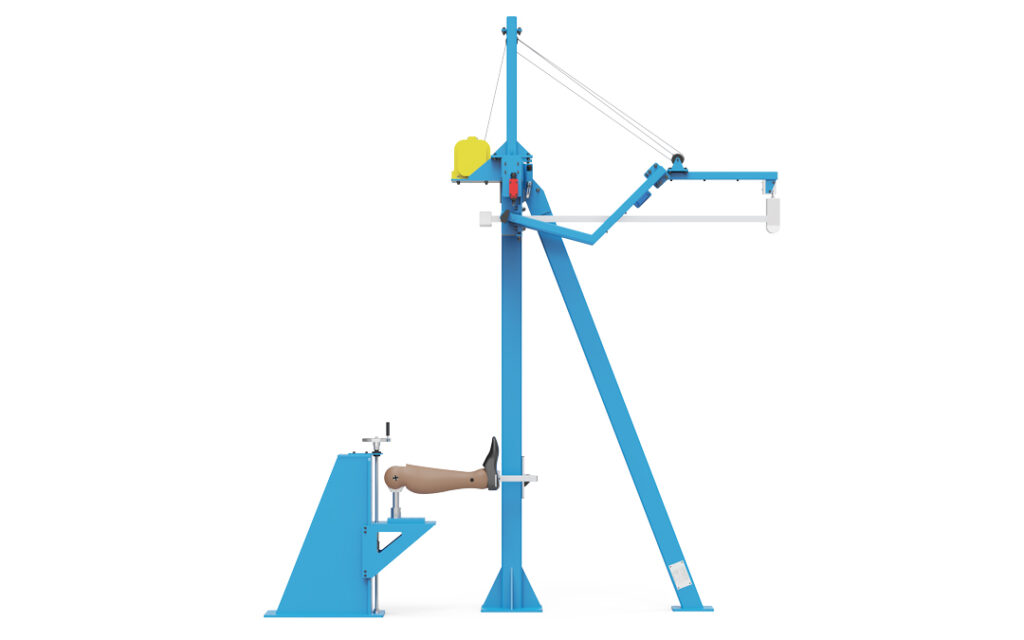

The Foot Impact Stand is a versatile system designed for testing and certifying components of the lower legs and feet assemblies on various ATDs. Including such tests as ankle inversion & eversion, ball of foot and heel of foot.
Cellbond also provides the regulation compliant fixtures needed specific to your ATD, please contact our sales department for more information
Key Features
- Support stand allows for fine tuning adjustment.
Specifications (Single pendulum):
| Overall Dimensions* (L x W x H) | Total Weight |
|---|---|
| 2.9 x 0.7 x 2.9 m | 250 kg |
Applications & Regulations
| Hybrid III 50th Male | UNECE Regulation 94, ECE R94 |
| THOR-50M | THOR-50M Qualification Manual |
| THOR-05F | THOR-05F Qualification Manual |
Instrumentation**
- Lower Tibia Load Cell – Dummy specific
- Ankle Potentiometers – Dummy Specific
*Safety enclosure not included options available through Cellbond.
**Available separately through Cellbond.
