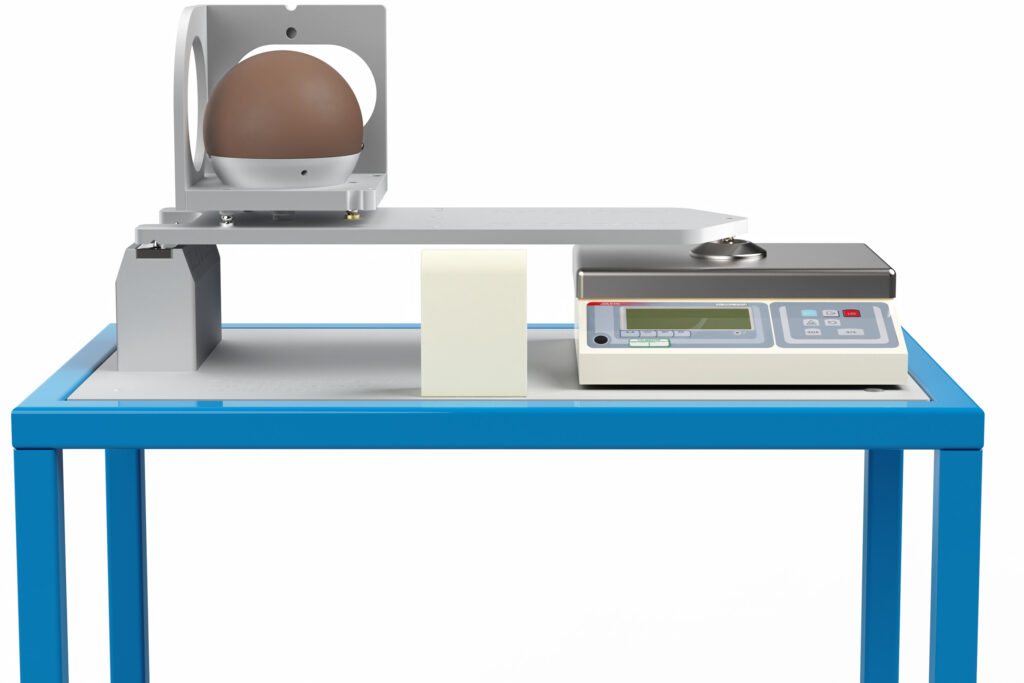

Cellbond’s Centre of Gravity Test Rig is used to calculate the centre of gravity for a range of headforms, including the Free Motion, Ejection Mitigation, and Pedestrian Impactor Headform.
Dedicated cradles are available for each headform to suit the regulations listed below.
Key Features
- Cradles included for testing multiple headforms
Specifications
| Overall Dimensions* | Total Weight |
|---|---|
| 0.9 x 0.5 x 1.1 m | 65 kg |
*Excluding headform cradle
Applications & Regulations
| Free Motion Headform (FMVSS 201U) | 49 CFR Part 572 Subpart L |
| Pedestrian Headforms (3.5 & 4.5 kg) | Addendum 126: UN Regulation No. 127 Rev. 2 |
| Ejection Mitigation Headform (226) | NHTSA FMVSS TP-226-00 |
Cradles included for
- Free Motion Headform (FMVSS 201U)
- Pedestrian Headforms (3.5 & 4.5 kg)
- Ejection Mitigation Headform (226)
